Dajia Impact Crusher/Crushing Machinery/stone Crushing Crusher

FOB Reference Price:Get Latest Price
US $100-9,999,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Impact Crusher
Application:
Stone crushing
Motor Type:
AC Motor
Place of Origin:
Henan, China (Mainland)
Brand Name:
Dajia
Certification:
ISO certification
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
negociated
Port
Qingdao
Lead Time :
30 days

Specifications

Impact Crusher widely applied in mining, transportation, energy, construction and chemical industry.

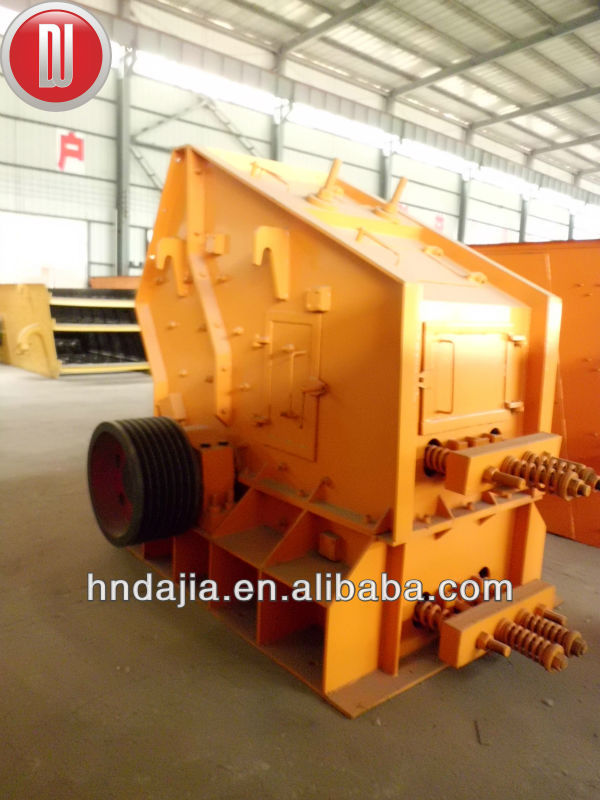

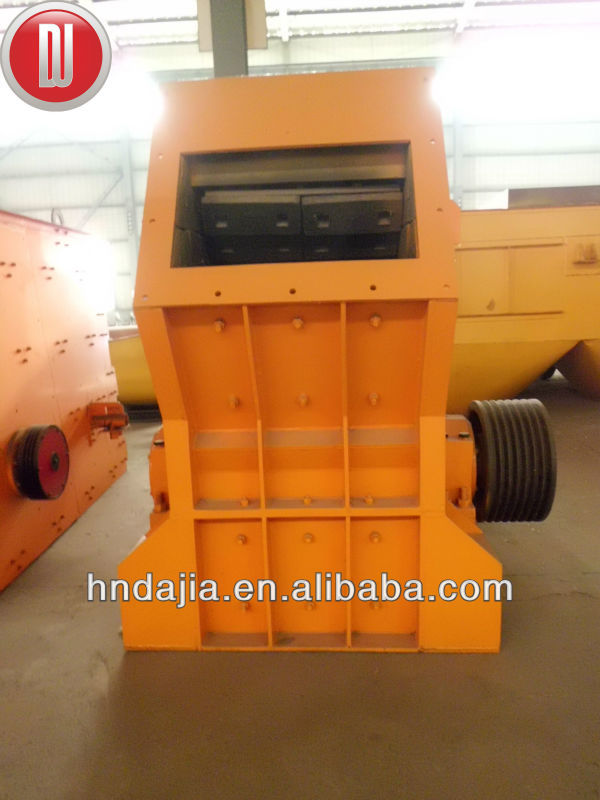

Impact Crusher

Henan Dajia series of impact crushing machine are widely applied in mining, transportation,energy, construction and chemical industry, etc. Impact crusher machine is ideal choice for crushing and screening. The features reasonable structure, high productivity, easy operation and maintenance and safe performance. The most outstanding advantage of the impact crusher is that its finished product is in good cubic shape without cracks.



Impact equipments are ideal choice for crushing and screening. This impact equipment features reasonable structure, high capacity, easy operation and maintenance and safe performance. The most outstanding advantage of the impact equipment is that its finished particle is in good cubic shape and without cranny.


Working Principle:
The impact equipment crushes materials with impact force. When the material enter the blow bar area, They are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor. Then the material will be shot back to the blow bar again for the third crush. This process repeats until the material are crushed to the required size and discharge from the lower part of the machine. The size and shape of finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other tramp enter the impact cavity, they will be forced out the machine by impact rack in the front and back of the machine.



1. High reduction ratio and crushing efficiency
2. No-board connection. The blow bar with high chrome
3. Blow bar with advanced design with longer service
4. Crushed product with good cubical shape
5. Easy maintenance and high performance



Model

Sizes(mm)

Feed opening
(mm)

Max feeding
size(mm)

Capacity(t/h)

Motor power
(kw)

Weight(kg)
(Without Motor)

Dimension(mm)
(L*W*H)

PF-1010

1000*1050

400*1080

350

50-80

75

12.2

2858*2508*2470

PF-1210

1260*1050

400*1080

350

80-120

110

15.5

2690*2340*2890

PF-1214

1250*1400

400*1430

350

110-180

132

19

2690*2740*2890

PF-1310

1300*1050

490*1170

400

80-140

200

18.5

3330*2595*2862

PF-1315

1320*1500

860*1520

500

150-220

220

23

3432*3040*2862

PF-1316

1300*1600

800*1630

500

170-240

220

23.5

3432*3140*2862

PF-1515

1450*1500

900*1650

500

280-340

280

33

3950*3350*3055
