Quick Details

  • Condition: New
  • Type: Rotary Drying Equipment
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: DAJIA
  • Model Number: 1500x12000
  • Voltage: 220-380V
  • Power(W): 15kw
  • Dimension(L*W*H): 1600x1600x12000mm
  • Weight: 17.8T
  • Certification: ISO Certification
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: As Requested
  • Energy Consumption: Lower
  • Installation: Guided by Engineer
  • Performance: Stable and Reliable
  • Customization: Available
  • Applications: Sawdust, Wood Chips, Biomass, Sand
  • Standard: Industry Standard
  • Rotary Speed: 2-6 r/min
  • Capacity: 9 T/h
  • Inlet Temperature: ≤800 °C

Packaging & Delivery

Packaging Details Standard containers,spare parts packed in wooden box.
Delivery Time 30 Days

Specifications

Sawdust rotary dryer machine
To dry sawdust, wood chips, biomass, sand, ore, powder
Simple maintenance
High efficiency
ISO

China Hot Sawdust Rotary Dryer Machine



Introduction

Hot sawdust rotary dryer machine is also called fertilizer rotary dryer, wood chips rotary drum dryer, rotary drying plant, and drying machine, sand dryer.

Rotary dryer can be seen in many industries. Because it is only a carrier, its thermal power is provided by the outer hot air to dry the materials.



Features

Sawdust rotary dryer has features like:

    -big processing capacity,

    -simple maintenance,

    -long service life,

    -reasonable structure,

    -high efficiency,

    -low energy consumption,

    -convenient transportation.



Application

Rotary dryer is used widely to dry sawdust, wood chips, biomass, construction sand, abandoned tailings, new energy material, ore, powder and coal. The dry selection shall consider the local fuel, place and environmental protection.





Structure

Drum dryer consists of the main drum and some other parts. The outer motor drives the big gear and then the dry works. The inside structure includes lifting type, screw type and separated type. The heating method includes downstream, upstream and middle heating.

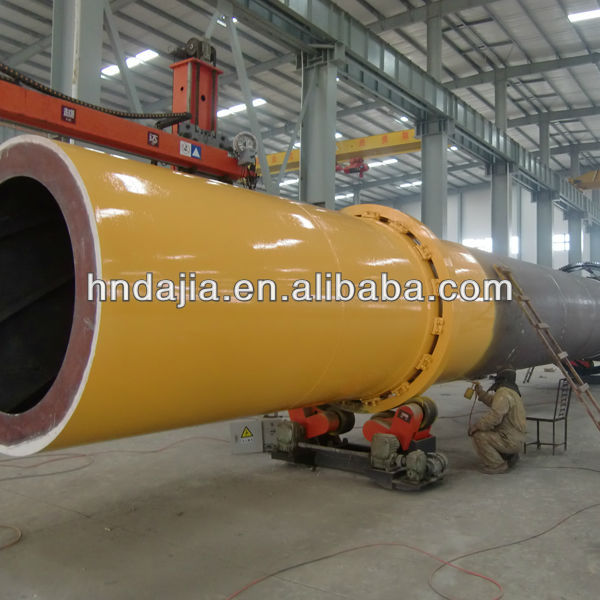

Rotary Drying Machine Painting

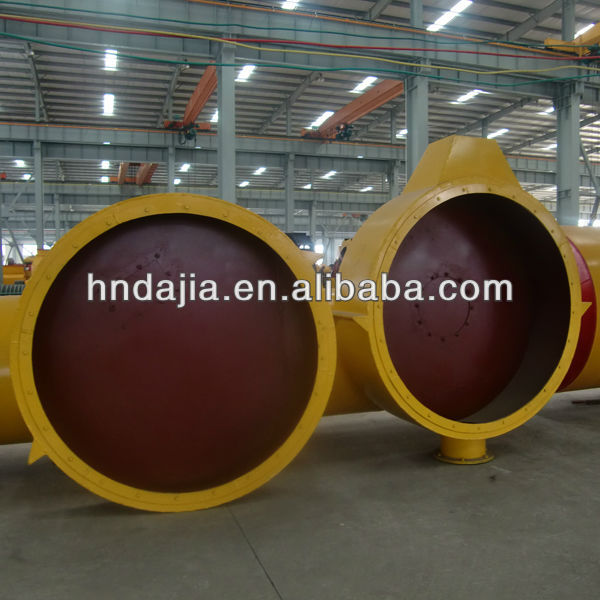

Head Covers of Sand Rotary Dryer

Inside Structure of Wood Chips Rotary Dryer



Specifications of Rotary Dryer

Model (mm)Inclination (%)Rotate speed (r/min)Air inlet temperature (°C)Power (kw)Production capacity(t/h)Weight (t)
Φ600x60003-53-8≤70030.5-1.52.9
Φ800x80003-53-8≤70040.8-2.03.5
Φ800x100003-53-8≤70040.8-2.54.5
Φ1000x100003-53-8≤7005.51.0-3.55.6
Φ1200x100003-53-8≤7007.51.8-514.5
Φ1200x120003-53-8≤700112-614.8
Φ1500x120003-52-6≤800153.5-917.8
Φ1800x120003-52-6≤800185-1225
Φ2200x120003-51.5-6≤80018.56-1533
Φ2200x180003-51.5-6≤8002210-1853.8
Φ2200x200003-51.5-6≤8003012-2056
Φ2400x200003-51.5-5≤8003718-3060
Φ3000x200003-51.5-5≤8005525-3578
Φ3000x250003-51.5-5≤8007532-40104.9



Working Flow of Rotary Drying Machine



Support Equipments of Drying Machine

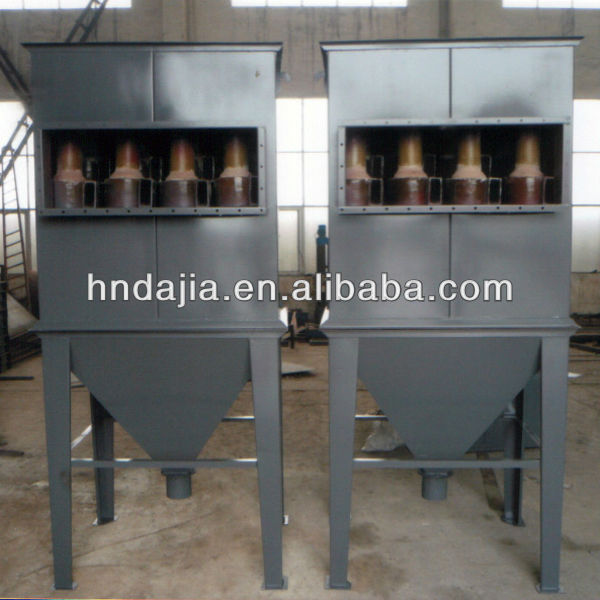

Dust Collector

Big Angle Conveyor

Foreign Customers Visit







Looking forward to hearing from you and welcome to Dajia factory!



For you placing order or sending inquiry, would you please provide some information?

-What kind of material you are going to dry?

-Capacity per hour you need?

-Water content before and after drying you require?

-What kind of fuel for the dryer?



Dajia Mining Machinery can manufacture machines for stone & sand production line, cement production line and ore separation line, such as crushing machine, ball mill, rotary dryer, rotary kiln and ore separator, with top quality and rich experiences.



 Dajia, you reliable supplier!
