Rotary Calciner / Calcination Rotary Kiln / Calcinating Rotary Kiln

FOB Reference Price:Get Latest Price
US $100-999,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Rotary Kiln
Usage:
Sintering Furnace
Place of Origin:
Henan, China (Mainland)
Brand Name:
DAJIA
Model Number:
1.8x45
Voltage:
380V
Power(W):
30kw
Dimension(L*W*H):
1.9x1.9x45m
Weight:
78.2T
Certification:
ISO Certification
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Diameter:
1.8m
Length:
45m
Inclination:
4
Production:
2.4 T/h
Rotary Speed:
1.62 r/min
Installation:
Guided by Engineer
Application:
Limestone, Lime, Cement, Ceramsite
Customization:
Available
Standard:
Industry Standard
Energy Consumption:
Normal
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard containers,spare parts packed in wooden box.
Port
Shanghai, Qingdao, Tianjin
Lead Time :
30 Days

Specifications

Rotary kiln is ideal for calcining high-grade cement in cement plants, also called cement kiln, lime kiln and ceramisite kiln.

Rotary Calciner/Calcination Rotary Kiln



Introduction to Rotary Kiln

Rotary kiln is a commonly used building material machine, which is also called a rotary calcine kiln, cement kiln, lime rotary kiln and  ceramisite rotary kiln, classifying by material properties.

Calcination rotary kiln/active lime kiln/rotary calciner is ideal for the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.

We can provide kilns with different shapes, including mesh-belt kiln, rotary furnace, tunnel furnace, shuttle kiln, push board kiln, etc.



Features of Calcination Rotary Kiln

1. simple structure

2. reliable

3. convenient control of production process

4. few wear parts

5. high operation rate

If you are looking for rotary kilns with solid structure and stable operation, don't hesitate to contact us.



.jpg

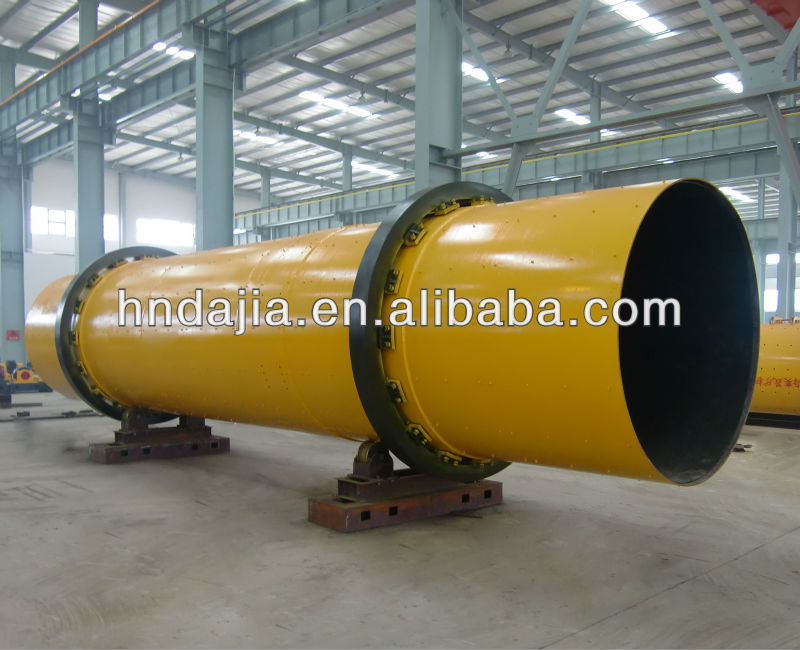

Kiln Body of Rotary Calcination Kiln



Introduction to Different Types of Rotary Kiln

1. Cement rotary kiln is primarily used for calcining cement clinker. It can be divided into dry process rotary kilns and wet process rotary kilns.

2. Metallurgy chemical kiln is mainly used for magnetized roasting of lean iron ore, and oxidizing roasting of chrome ore and nickel ore, etc. In steel plants.

In refractory plants, this rotary kiln is mainly used for roasting different high-alumina refractories.

In aluminium factories, it is mainly used for roasting clinker and aluminum hydroxide.

When used in chemical industry, it is mainly used for roasting chrome ores, and chrome powders, and more.

3. Lime kiln is applied to roast active lime and dolomite which are commonly used in steel factories and ferroalloy factories.

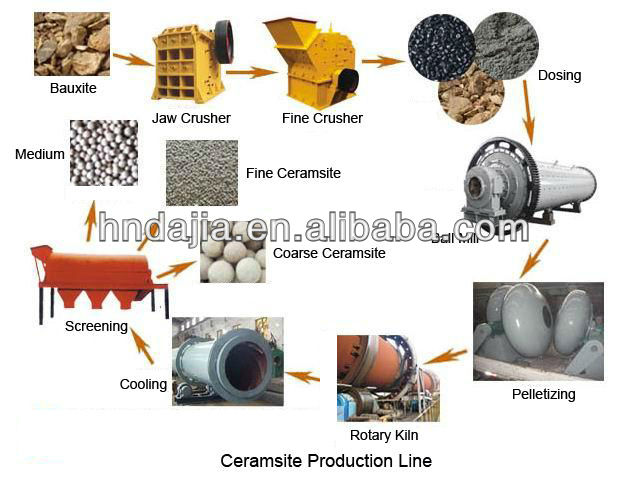

ceramsite production line .jpg



Specifications of Rotary Calciner

Specifications (m)Size of kilnProduction (t/h)Rotate speed (r/min)Motor power (kw)Weight (t)Remarks
Diameter (m)Length (m)Inclination (%)
Φ 1.4× 331.43330.9-1.30.39-3.9618.547.5---
Φ 1.6× 361.63641.2-1.90.26-2.632252---
Φ 1.8× 451.84541.9-2.40.16-1.623078.2---
Φ 1.9× 391.93941.65-30.29-2.933077.59---
Φ 2.0× 4024032.5-40.23-2.2637119.1---
Φ 2.2× 452.2453.53.4-5.40.21-2.4445128.3---
Φ 2.5× 402.5403.59.0-10.50.44-2.4455149.61---
Φ 2.5× 502.55036.25-7.40.62-1.8655187.37---
Φ 2.5× 542.5543.56.9-8.50.48-1.4555196.29---
Φ 2.7× 422.7423.510.0-11.00.10-1.5255198.5---
Φ 2.8× 442.8443.512.5-13.50.437-2.1855201.58Rotary kiln with suspension preheater
Φ 3.0× 453453.512.8-14.50.5-2.4775210.94---
Φ 3.0× 483483.525.6-29.30.6-3.48100237Precalciner kiln
Φ 3.0× 603603.512.3-14.10.3-2100310
Φ 3.2× 503.250440.5-420.6-3125278Precalciner kiln

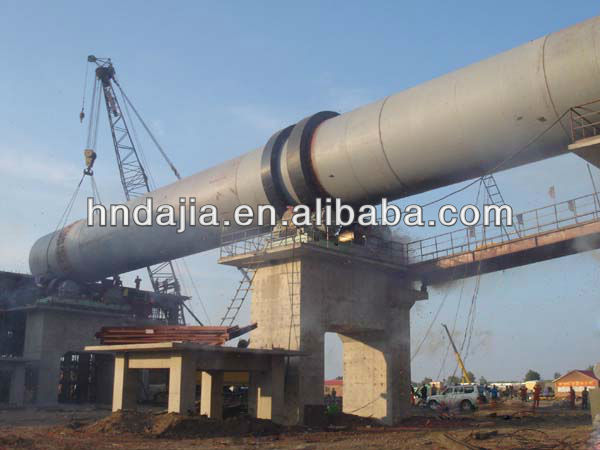

Consturction Site of Activated Carbon Rotary Kiln.jpg
