Quick Details

  • Condition: New
  • Type: Ball Mill
  • Motor Type: AC Motor
  • Power(W): 90
  • Capacity(t/h): 3-6 t
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: DAJIA
  • Model Number: 1500*4500
  • Weight: 21 t
  • Certification: ISO Certification
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • color: yellow
  • discharging size: 0.074-0.4mm
  • input size: <25mm
  • ball loat: 10 t

Packaging & Delivery

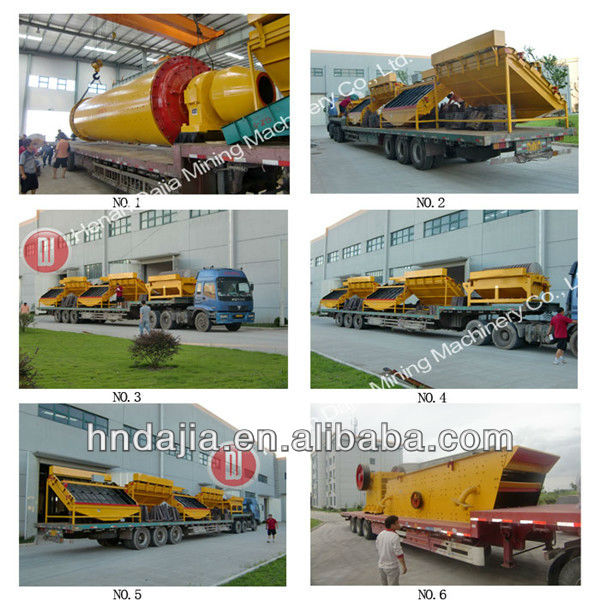

Packaging Details Standard containers,spare parts packed in wooden box.
Delivery Time 30 Days

Specifications

Ball mill is often used for concentrate mill and cement plant. It makes grain materials into fine powder or micro powder.

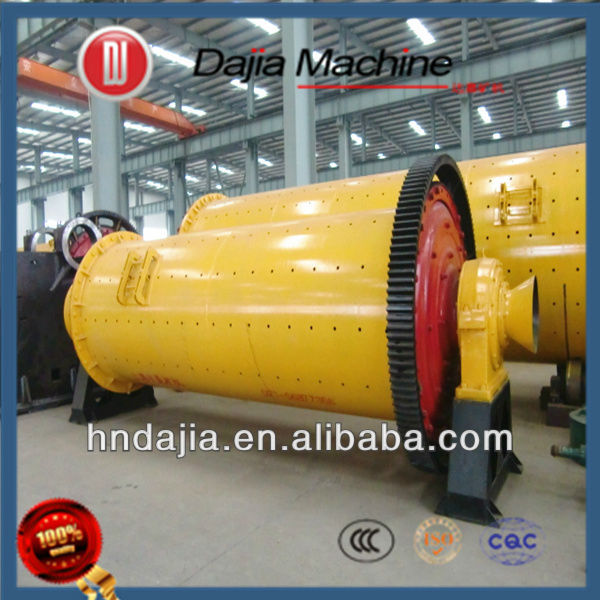

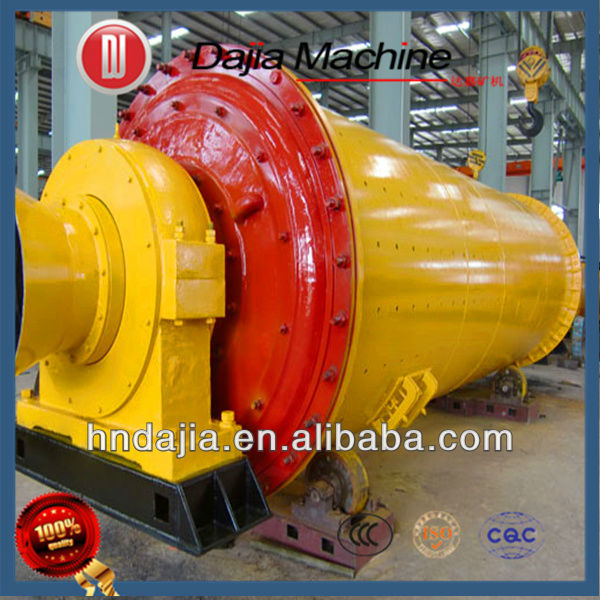

Ball Mill /Cement ball mill/ceramic ball mill

Ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. It could carry out dry and wet millings on different materials.


Structure



Ball mill is consist of feeding, discharging, rotary part, transmission part (reducer, small driving gear, electric

motor, electrical control) and other major parts.








Usage in Mineral Processing:
Minerals are firstly crushed by jaw crusher until they are crushed to suitable sizes. They are then equally fed to a ball mill with a hoister and a feeder. Later, they are further crushed and milled in the bal Ball mill is a mineral processing machine for milling the materials into powders after they are crushed.



It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. It could carry out dry and wet millings on different materials.







Technical parameters



Model and specificationRotate speed of cylinder (r/min)Ball load(t)Feeding granularity(mm)Discharging granularity(mm)Production(t/h)Power(kw)Weight(t)
900×1800381.5≤200.075-0.890.65-218.53.6
900×3000382.7≤200.075-0.891.1-3.5224.6
1200×2400323.8≤250.075-0.61.5-4.84512.5
1200×3000325≤250.074-0.41.6-54512.8
1200×4500327≤250.074-0.41.6-5.85513.8
1500×3500278≤250.074-0.42-59017
1500×45002714≤250.074-0.43-611021
1500×57002715≤250.074-0.43.5-813224.7
1830×30002411≤250.074-0.44-1018028
1830×64002423≤250.074-0.46.5-1521034
1830×70002425≤250.074-0.47.5-1724536
2200×55002130≤250.074-0.410-2237048.5
2200×65002131≤250.074-0.414-2638052.8
2200×75002133≤250.074-0.416-2947556
