Double Roller Crusher for Clay Crushing

FOB Reference Price:Get Latest Price
US $10-9,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Roller Crusher
Application:
Crushing
Motor Type:
AC Motor
Capacity(t/h):
5-50t/h
Place of Origin:
Henan, China (Mainland)
Certification:
ISO certification
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard containers
Port
Qingdao/Tianjin
Lead Time :
within 30 days after confirmed order

Specifications

Roll crusher is for secondary and fine crushing in industries of mining, building materials, chemical industry, metallurgy, etc

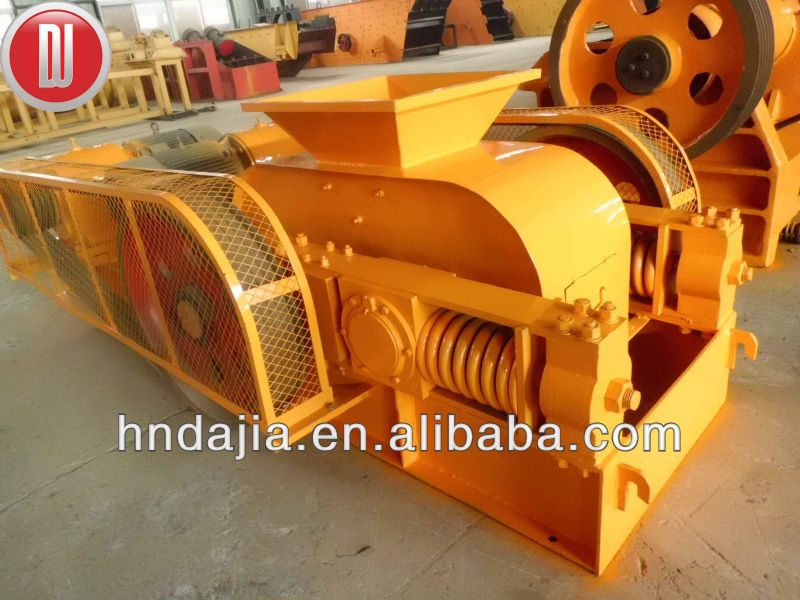

Double Roller Crusher

 Double roller crusher/roll crusher/roller crusher/double roll crusher/roll mill crusher can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.

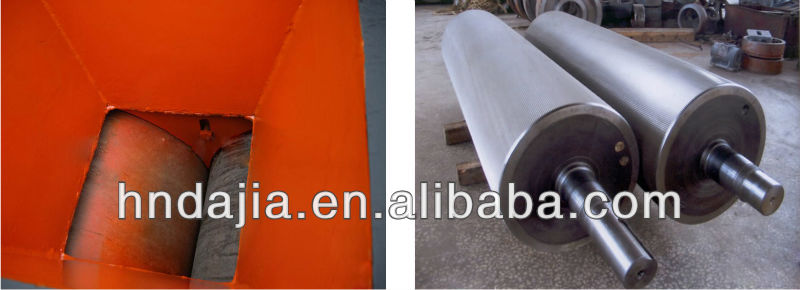

The motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance. As the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.CIMG3188.JPG

Features

1. Compact structure, lower noise and efficient;
2. Easier to install and only need simple foundation;
3. Pressure and particle size are adjustable easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;
5. Lower cost maintenance and easy to maintain.



Technical details

ModelFeeding Size(mm)Output Size(mm)Capacity(t/h)Motor Power(kw)Weight(t)Overall Dimension(mm)
2PG400×250<25≤1-85-102x5.51.52110×870×810
2PG610×400<40≤1-2013-352x154.53510×1420×1030
2PG750×500<40≤2-2015-402x18.512.254210×1630×1260
2PG900×500<40≤3-4020-502x22144605×1780×1320

 -1



  If you need any help, please call Gary: 86-371-67575157,+86 15617816797. skype:gary102884
Henan Dajia mining machinery aims to provide the better products and the most economic and reasonable solution to you, our technical experts are preparing to provide the technical assistance to you at any time, and we hope to establish a long-term relation and pursuit a higher value cooperation with you.
